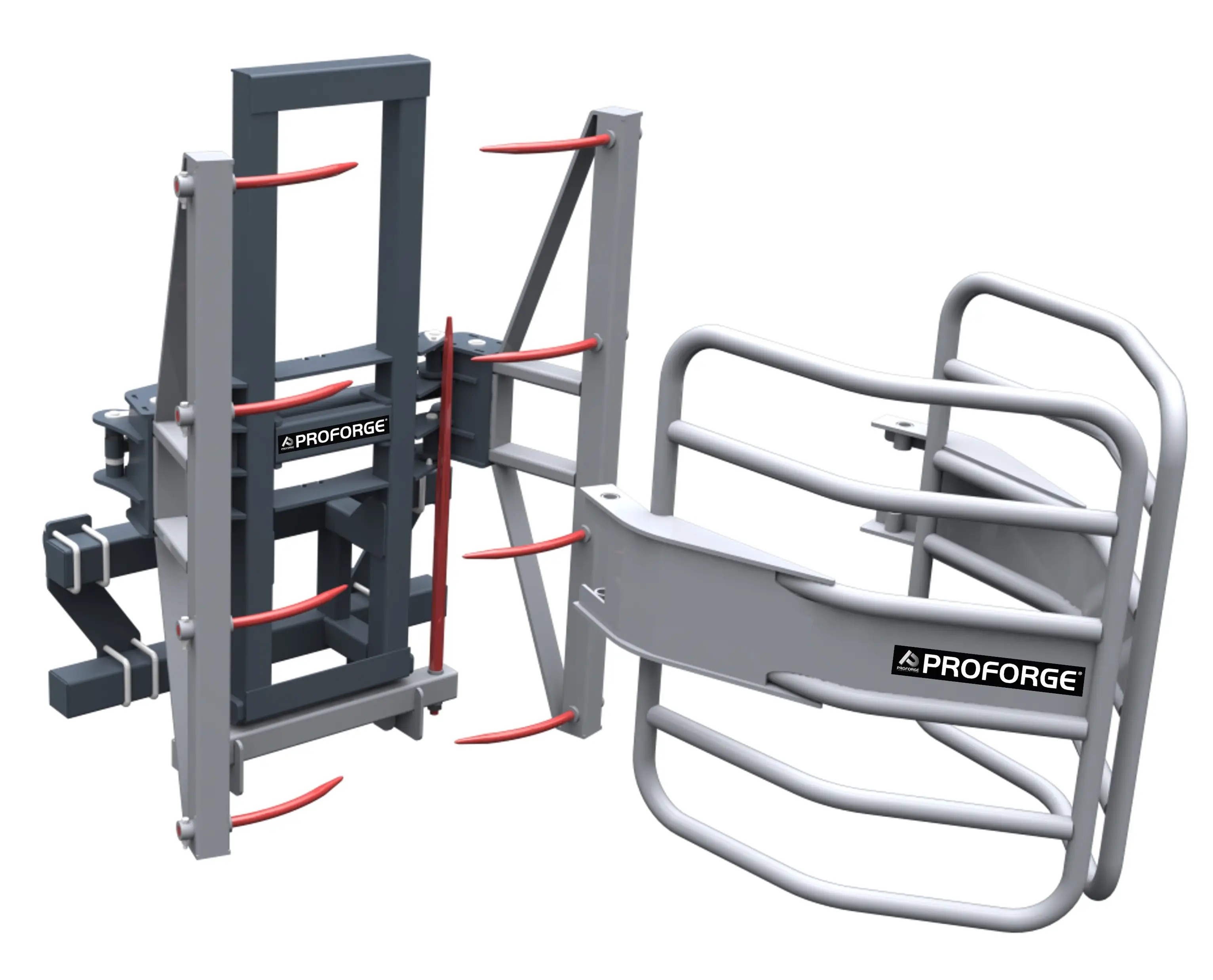

PROFORGE Combi Bale Grab Vertical Stack Mover for Round/Square Bales - Choice of Brackets

PROFORGE Combi Bale Grab Vertical Stack Mover for Round/Square Bales

The Combi Big Bale Grab/Handler is intended for square & round bales with or without wrap, and comes with 2 sets of Clamp Arms - Spikes and Soft Hands

Bolt-on Euro Brackets included as standard. Other weld - on brackets available (not fitted)

The Combi Bale Grab with Spikes:

1. Suitable for square and round bales
2. Minimum round bale diameter ready for handling: 800mm
3. Two symmetric bale grab arms are 1620mm in height with each carrying four cold-bent spikes spaced every 500mm
4. The folding bottom fork features two straight 1100mm long spikes with a spacing of 725mm
5. Can be operated with the bottom spikes folded out or away
6. Overall height: 1800mm
7. Width unfolded: 1750 mm - Gap between spikes when open 1746mm
8. Weight: 330kg
9. SWL: 1200kg

The Combi Bale Grab with Soft Hands:

1. Intended for round bales wrapped in plastic film. The bottom forks do not have to be removed: just fold them in so they will not strike the handled bales.
2. Bale grab arm opening widths: Widest opening width of 2800mm; the opening width can be reduced to 1652mm with lock pins as required for the job.
3. Two symmetric bale grab arms are 1144mm in height and 960mm long and made from 48.3mm diameter tubes
4. Overall height: 1715mm
5. Maximum length: 1300mm
6. Weight: 323kg
7. SWL: 800kg
