AXLE SUSPENSION KIT - Twin Axle 80mm wide 6 Leaf Spring Kit, rated up to 14,000kg - 1200mm Wheel Base Between Axle Centres

SKU
80mmSuspensionKit14T1200mm

Condition: New

AXLE SUSPENSION KIT - Twin Axle 80mm wide 6 Leaf Spring Kit, rated up to 14,000kg - 1200mm Wheel Base Between Axle Centres

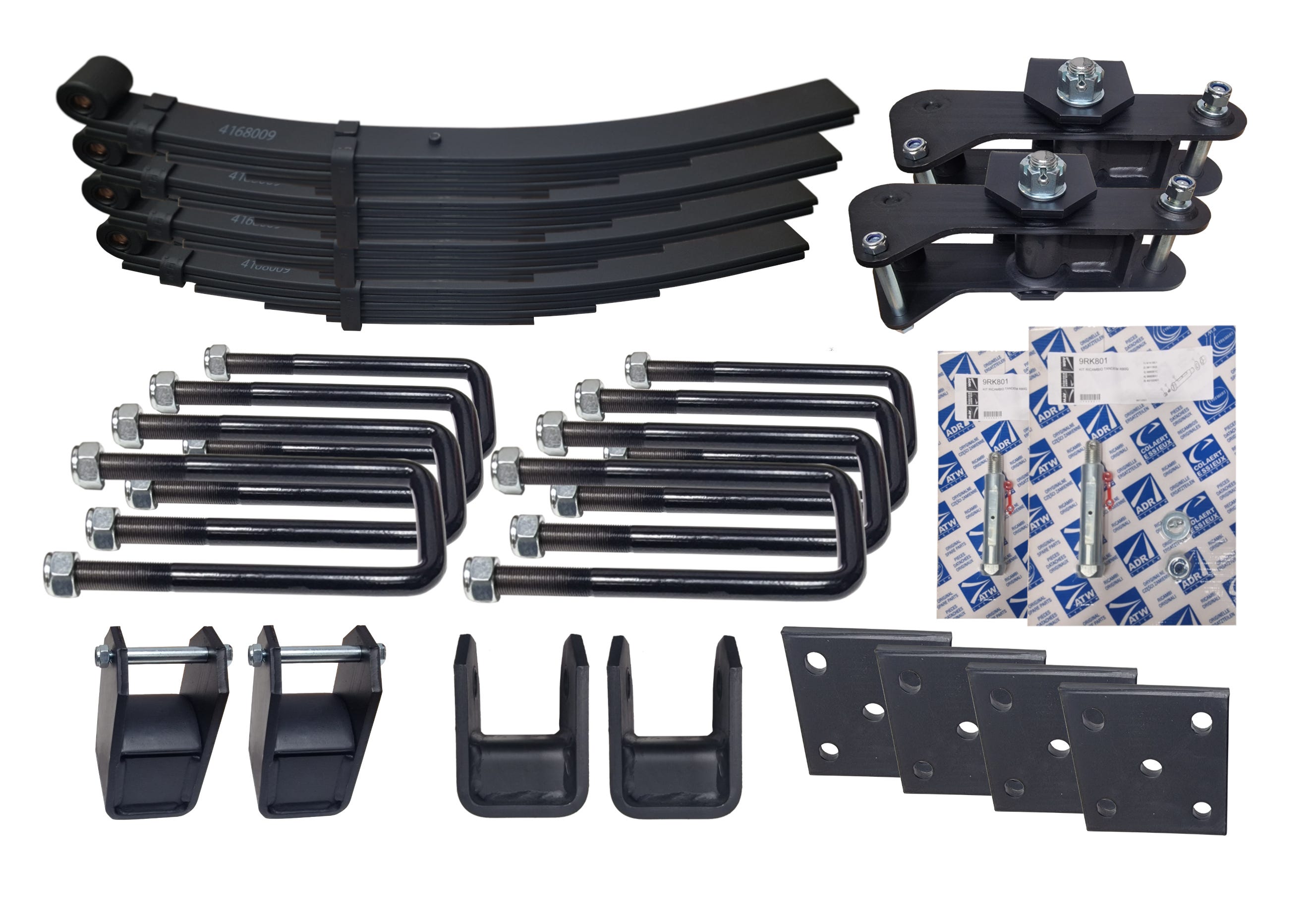

Kit Comprises:

  • 2 x Centre Rockers
  • 2 x Front Hangers
  • 2 x Rear Hangers
  • 4 x 80mm wide 6-Leaf springs:
  • Spring Dims : 6 x 15mm Thick Leaves ; Length: A= 995mm overall, eye to centre bolt: 440mm
  • 8 x U-bolts - select axle size below
  • 4 x U-bolt clamp plates - select size below
  • 4 x U-bolt axle plates
  • All bolts, nuts, greasable pins and bushes included
6 Leaf 80mm wide Spring Axle Suspension Kit for 100mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity 6 Leaf 80mm wide Spring Axle Suspension Kit for 100mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity
£1,618.56 £1,348.80 Ex. VAT
Sku: PA303508
Available For Delivery
Available On Request At Bourne
Available On Request At Thaxted
6 Leaf 80mm wide Spring Axle Suspension Kit for 80mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity 6 Leaf 80mm wide Spring Axle Suspension Kit for 80mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity
£1,480.38 £1,233.65 Ex. VAT
Sku: PA303506
Available For Delivery
Available On Request At Bourne
Available On Request At Thaxted
6 Leaf 80mm wide Spring Axle Suspension Kit for 127mm Round Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity 6 Leaf 80mm wide Spring Axle Suspension Kit for 127mm Round Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity
£1,658.03 £1,381.69 Ex. VAT
Sku: PA303509
Available For Delivery
Available On Request At Bourne
Available On Request At Thaxted
6 Leaf 80mm wide Spring Axle Suspension Kit for 90mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity 6 Leaf 80mm wide Spring Axle Suspension Kit for 90mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity
£1,490.26 £1,241.88 Ex. VAT
Sku: PA303507
Available For Delivery
Available On Request At Bourne
Available On Request At Thaxted
6 Leaf 80mm wide Spring Axle Suspension Kit for 70mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity 6 Leaf 80mm wide Spring Axle Suspension Kit for 70mm Square Axle - 1200mm Wheel Base Length - 14,000 Kg Capacity
£1,395.71 £1,163.09 Ex. VAT
Sku: PA303505
Available For Delivery
Available On Request At Bourne
Available On Request At Thaxted

AXLE SUSPENSION KIT - Twin Axle 80mm wide 6 Leaf Spring Kit, rated up to 14,000kg - 1200mm Wheel Base Between Axle Centres

Kit Comprises:

  • 2 x Centre Rockers
  • 2 x Front Hangers
  • 2 x Rear Hangers
  • 4 x 80mm wide 6-Leaf springs:
  • Spring Dims : 6 x 15mm Thick Leaves ; Length: A= 995mm overall, eye to centre bolt: 440mm
  • 8 x U-bolts - select axle size below
  • 4 x U-bolt clamp plates - select size below
  • 4 x U-bolt axle plates
  • All bolts, nuts, greasable pins and bushes included
