Hydraulic Top Link - Knuckle End (Extra) - Choice of Lengths - Cat 2 or 3

Name: Hydraulic Top Link - Knuckle End (Extra) - Choice of Lengths - Cat 2 or 3
SKU: HYDTOPLINK2

SKU

HYDTOPLINK2

Condition: New

Hydraulic Top Links - Complete with Quick release hook, check valve, length indicator, machine end top link ball, painted black

Maximum radial load: 10% of the axial force

You will need to also order the following extras: 1. 900mm hose kit with probes and 2. Tractor-End Top-Link Knuckle

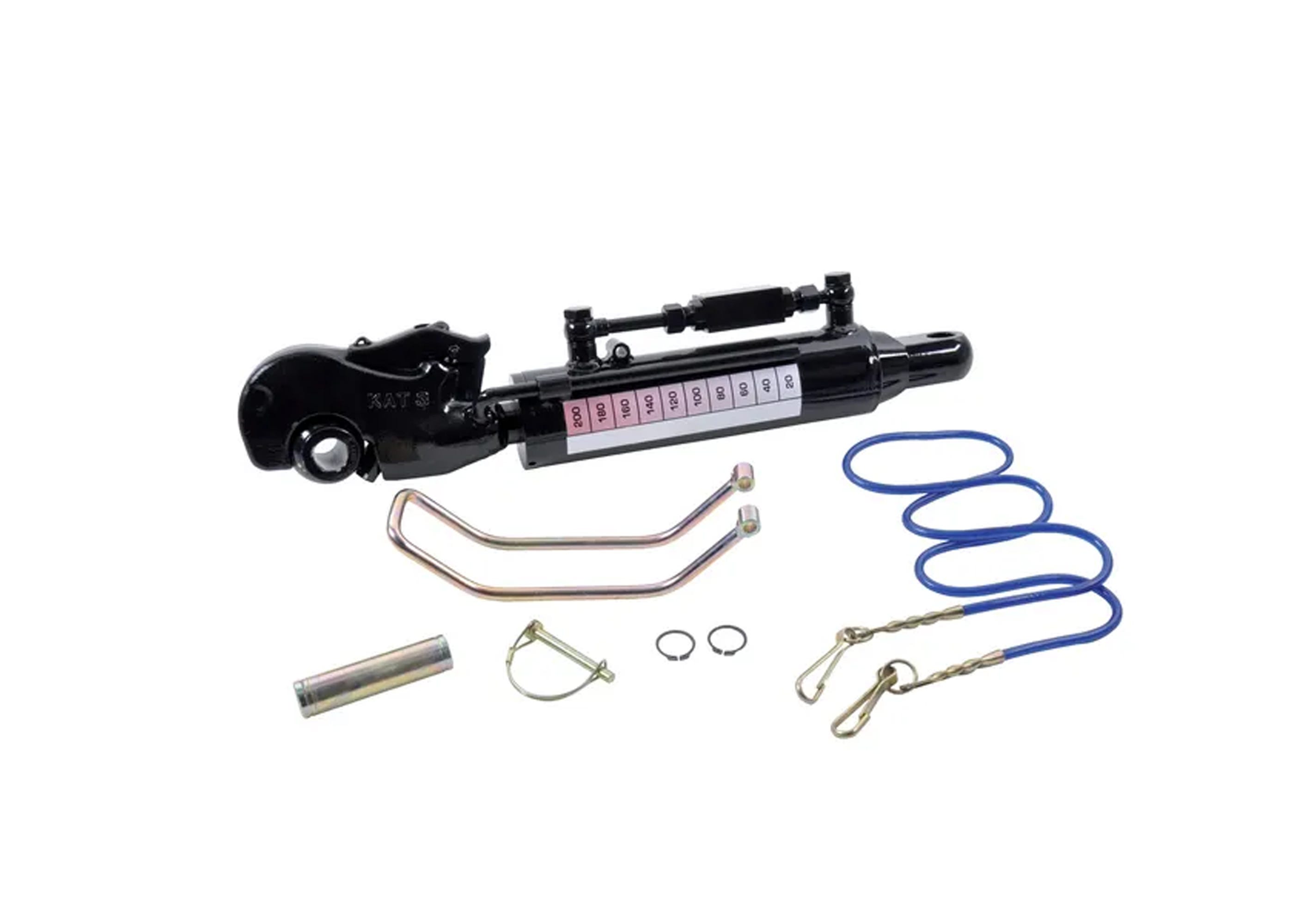

	Hydraulic toplink Cat 2, 35mm rod, 505mm min length, 180mm stroke, 63mm bore £402.70 £335.58 Ex. VAT Sku: PA304215	Available For Delivery Available On Request At Bourne Available On Request At Thaxted

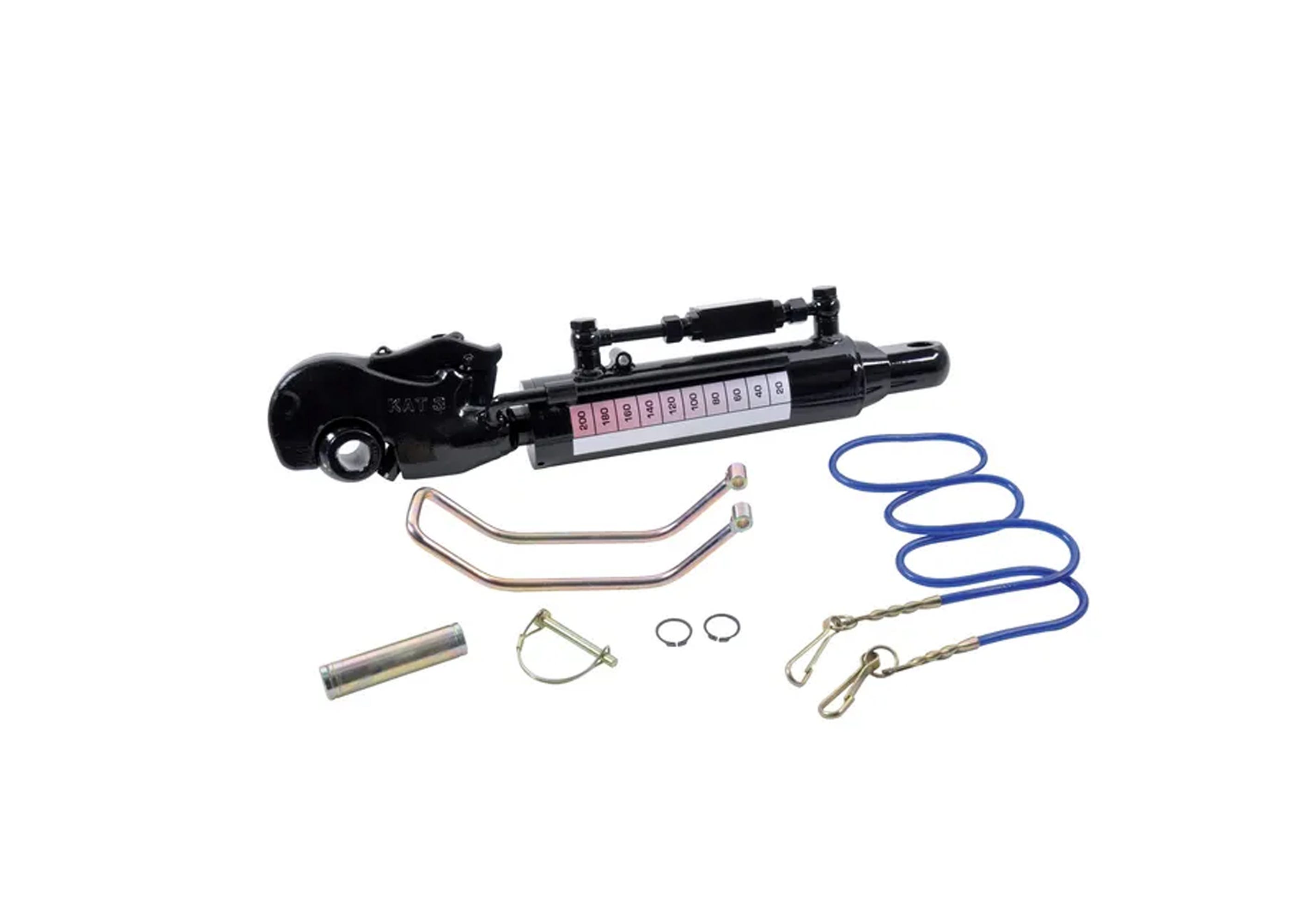

	Hydraulic toplink Cat 2, 35mm rod, 555mm min length, 230mm stroke, 63mm bore £404.72 £337.27 Ex. VAT Sku: PA304216	Available For Delivery Available On Request At Bourne Available On Request At Thaxted

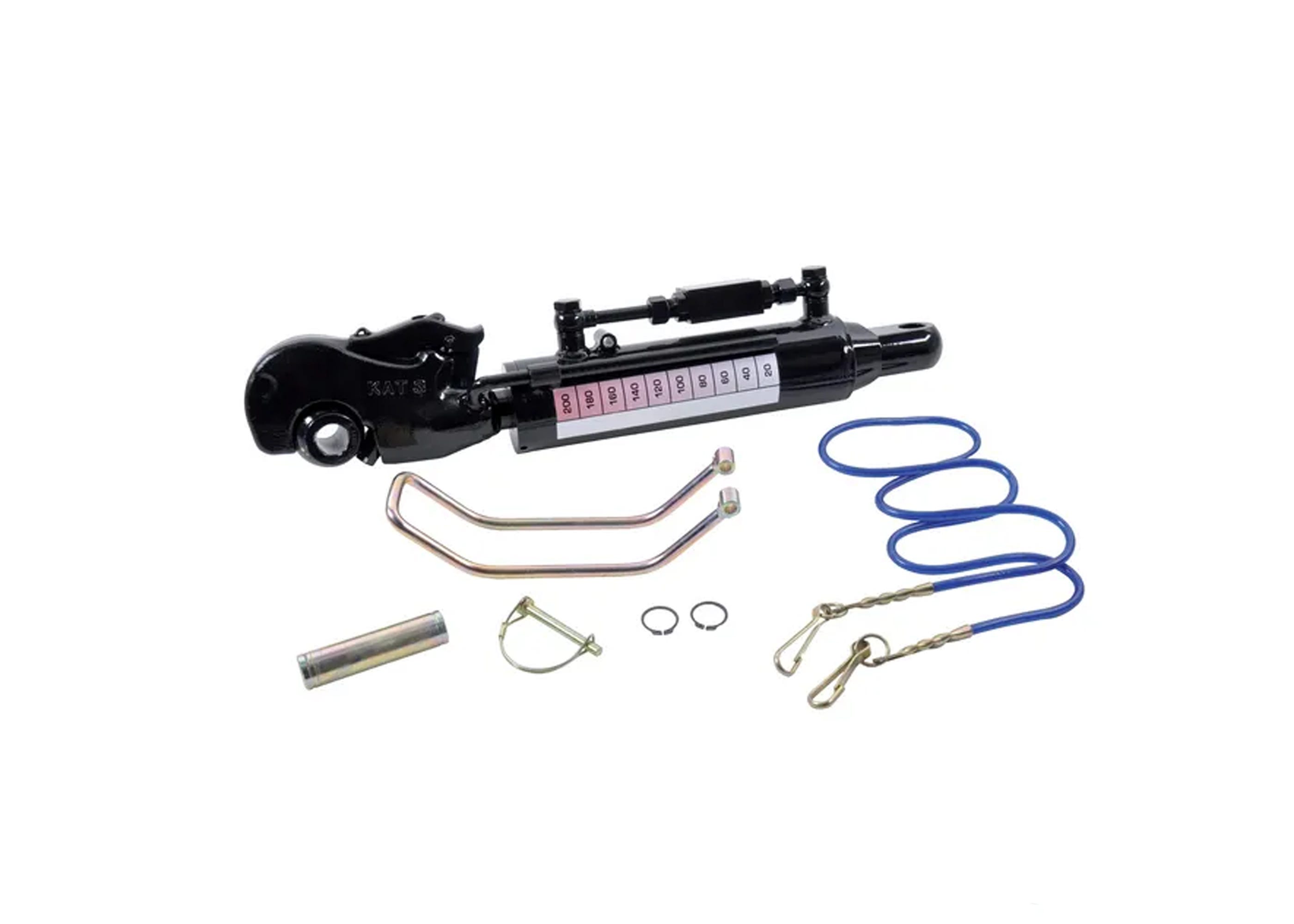

	Hydraulic toplink Cat 3, 35mm rod, 540mm min length, 185mm stroke, 70mm bore £496.48 £413.73 Ex. VAT Sku: PA304217	Available For Delivery Available On Request At Bourne Available On Request At Thaxted

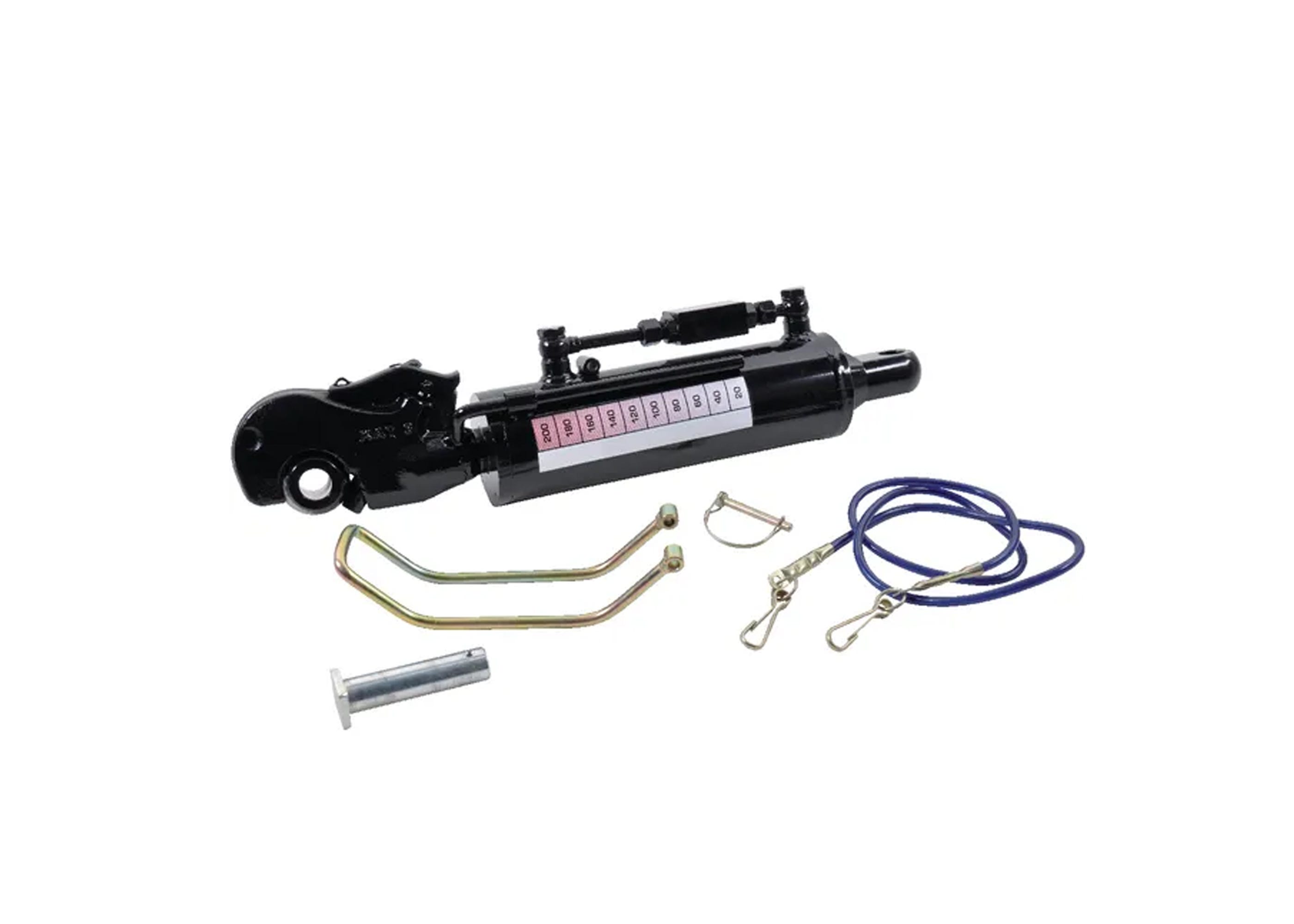

	Hydraulic toplink Cat 3, 40mm rod, 565mm min length, 185mm stroke, 90mm bore £574.30 £478.58 Ex. VAT Sku: PA304219	Available For Delivery Available On Request At Bourne Available On Request At Thaxted
	Hydraulic toplink Cat 3, 35mm rod, 605mm min length, 250mm stroke, 70mm bore £462.60 £385.50 Ex. VAT Sku: PA304218	Available For Delivery Available On Request At Bourne Available On Request At Thaxted
