Hydraulic Ram Depth Stop Wedges - For 30-38mm Piston Diameter - 7 Sizes (19.2mm to 107.7mm)
SKU
DEPTHSTOP1
Precision‑machined hydraulic ram depth stop wedges to suit pistons from 30–38mm diameter. Available in seven thickness options for fine‑tuning working depth on cultivators, drills, packers and other hydraulic‑controlled farm machinery. Widely used on Vaderstad, Simba, Horsch, Knight and many others.
Hydraulic Ram Depth Stop Wedges for 30-38mm Piston Diameter
These high‑quality aluminium depth stop wedges provide reliable and repeatable control of hydraulic ram stroke on a wide range of agricultural implements. Designed to fit piston diameters between Ø30mm and Ø38mm, they allow operators to quickly set or adjust working depth in the field. Commonly fitted to Vaderstad, Simba, Horsch, Knight and many other cultivation and drilling systems.
Key Features
- Suits hydraulic rams with Ø30–38mm piston diameter
- Available in seven precision‑machined thicknesses
- Manufactured from strong, lightweight aluminium
- Easy to install, remove and stack for depth adjustment
- Supports consistent and accurate field operation
Applications
Ideal for use on cultivators, presses, packers, seed drills and machinery with hydraulic lift/folding systems. These wedges ensure consistent working depth and help reduce wear by preventing over‑compression of hydraulic systems.
Technical Specification Table
| SKU | Thickness | Weight | To Fit Piston Diameter |
|---|---|---|---|

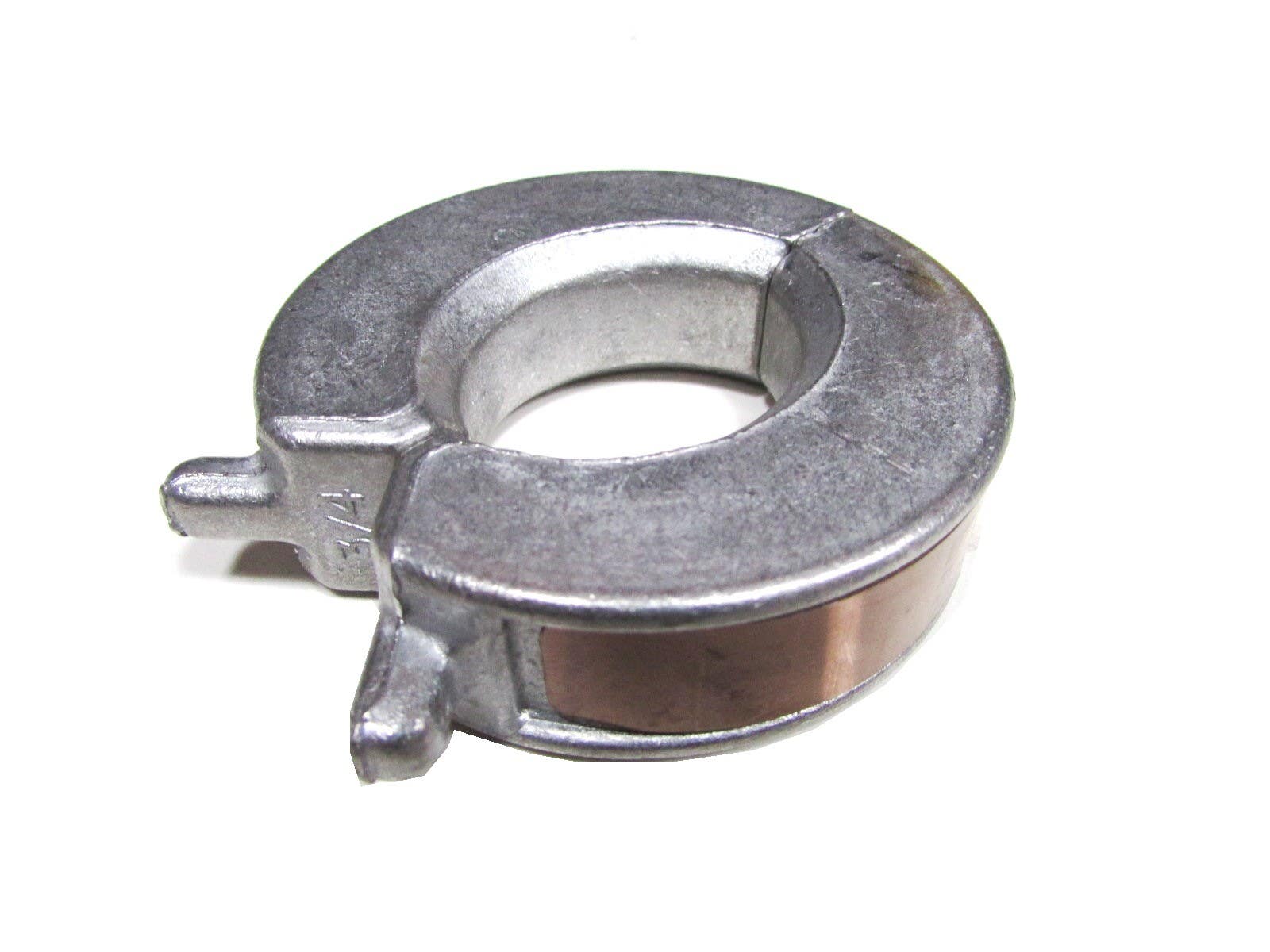

| PA300507 | 19.2 mm | 0.140 kg | Ø30–38 mm |

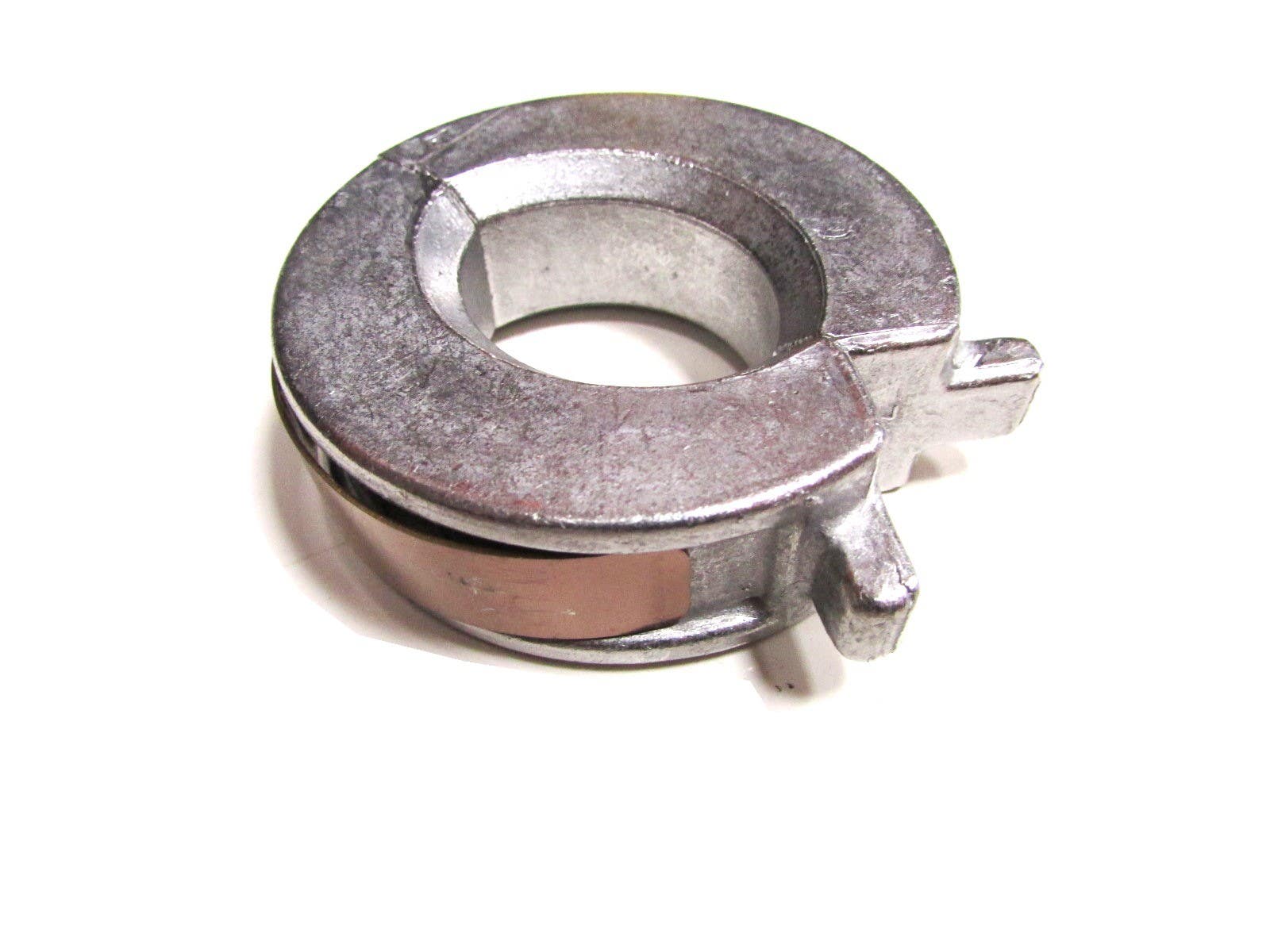

| PA300508 | 21.6 mm | 0.160 kg | Ø30–38 mm |
| PA302710 | 25.4 mm | 0.190 kg | Ø30–38 mm |
| PA300509 | 31.8 mm | 0.240 kg | Ø30–38 mm |
| PA300510 | 38.1 mm | 0.300 kg | Ø30–38 mm |

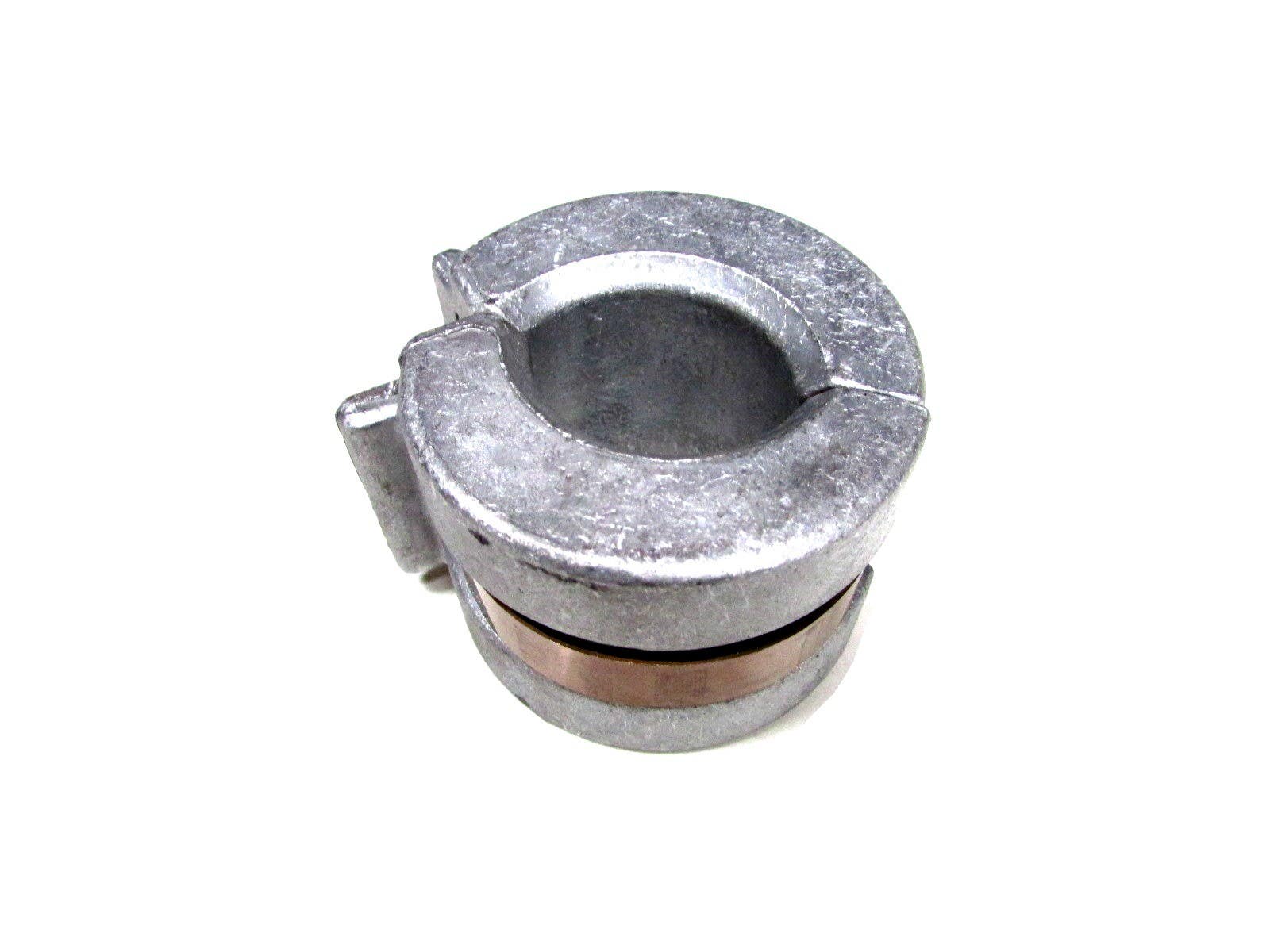

| PA300522 | 50.6 mm | 0.370 kg | Ø30–38 mm |
| PA300523 | 107.7 mm | 0.790 kg | Ø30–38 mm |
All specifications are based on official manufacturer data. Dimensions and weights are approximate and may vary slightly.
Need Help?
Our Sales Team can assist you with selecting the correct depth stop or building a complete set for your machine.
